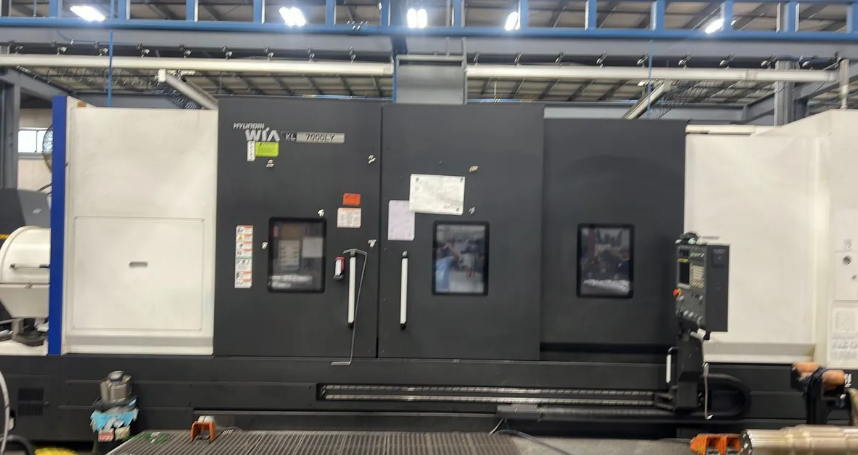

2022 Hyundai Wia KL7000LY, 24" Chuck Y Axis

Fanuc 32i Series Control Ø36.2” (920mm) Max. turning diameter 128” (3,250mm) Max turning length Ø6.5” (165mm) Powerful 60 HP (45kW) spindle motor High Torque 5,109 lbs.ft 1,500 RPM [700 RPM] Live Tool: 3,000 rpm BMT 85P 15HP / 103.3 lbf.ft torque A1-15 spindle nose Travel X/Y/Z :19.7” / 8.7” / 129.1” (500 / 220 / 3,280mm) Rapid speed: X/Y/Z : 472 / 394 / 472 IPM(12 / 10 / 12m/min) Box guideways Programmable MT# 6 Built in tail stock Auto Tool Setter [Manual Tool Setter] Tool size: □1.3” / Ø3.1” (□32mm / Ø80mm) 87 PSI coolant system (290 PSI_opt.) Spindle override 50% to 150% Double Pre-Tensioned Ball screws Chip Conveyor (47” discharge height) 3 color tower signal light Full enclosure splash guard
